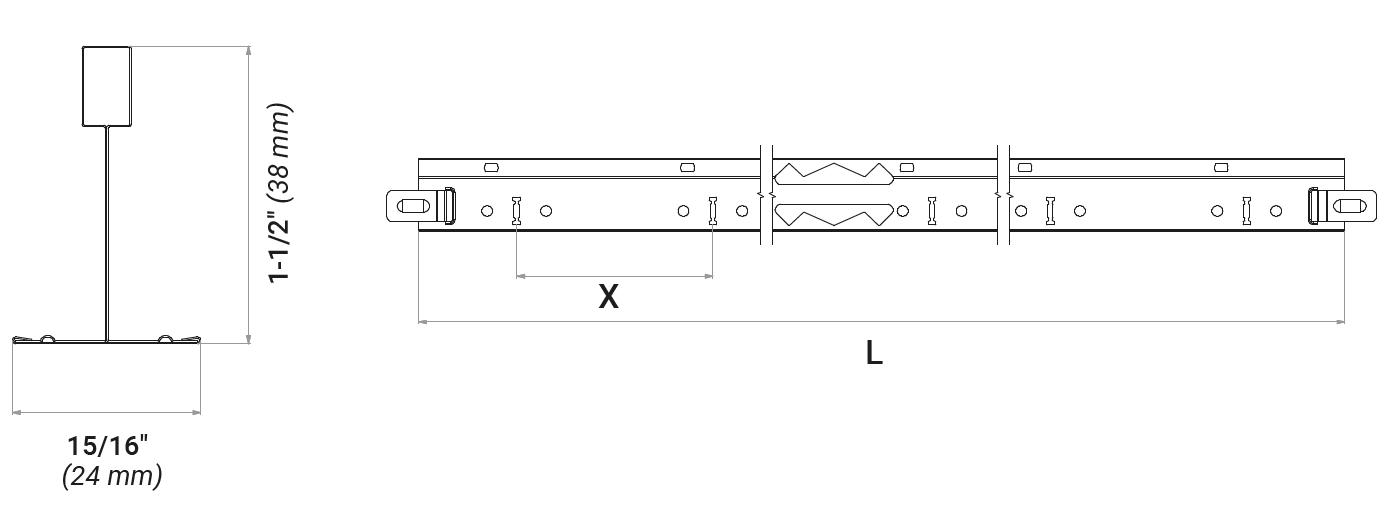

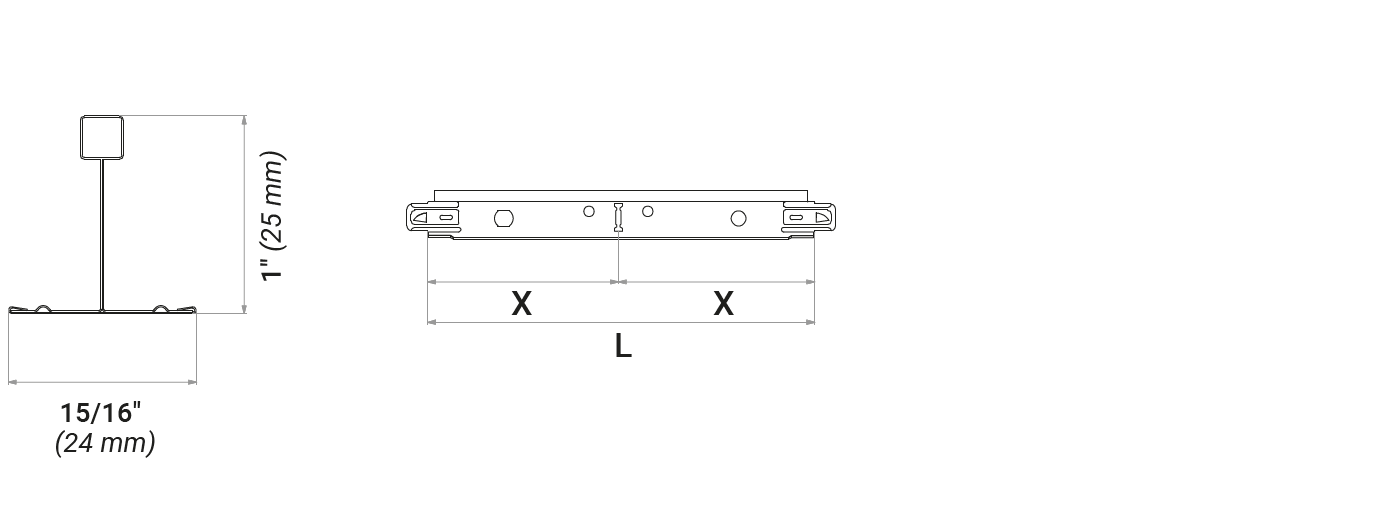

MX24 –

Material:
Hot-dipped galvanized steel and capping thermosetting paint, tested in accordance with ASTM B117-19
and ASTM D1735-08;

Load test data shows uniform load in lb/lf based on simple span
tests, in accordance with ASTM C635 deflection limit of L/360;

ICC – Report: for areas under ICC jurisdiction,
see ICC evaluation report number ESR – 5239 For allowable values and/or condition of use concerning the suspension system component listed on this page. The report is subjected to reexamination, revisions and possible cancellation;

Installation according to ASTM C636 and Cipriani USA Inc Installation Instructions;

Standard colors:
White
Black Matte
Silver
